| Jensen Transformer for |
| Transparent sound |
|
Stops
"hum
and
buzz"
problems
in
musical
instrument hook-ups |
| Take up little space on stage |
| Keep working. |
| Doesn’t have a bunch of switches to get put in the wrong position. |
| Affordable. |
This Box has a ground lift
switch. Nothing else.
You don’t need or want a bunch of switches to
adjust all sorts of things down there on the stage.
If you are at the board and realize something isn’t right in
the middle of a set you are stuck.
You have those controls on your board.
You certainly don’t want a filter switch to alter the
sound.
This DI box has a ground lift switch.
Nothing to get moved to wrong position. Nothing to break. Nothing for others to mess with. Just plug it in.
This simplicity also allows us to keep all audio wiring
short and tightly twisted to further prevent hum.
We made it all metal 4.38 in by 2.38 in by 1.43 in so
it is small and light and strong. Nothing
sticks out anywhere. It is easy
to stuff in your gig bag. Nothing breaks off nothing hooks on
cords or other stuff on the stage or in your bag.

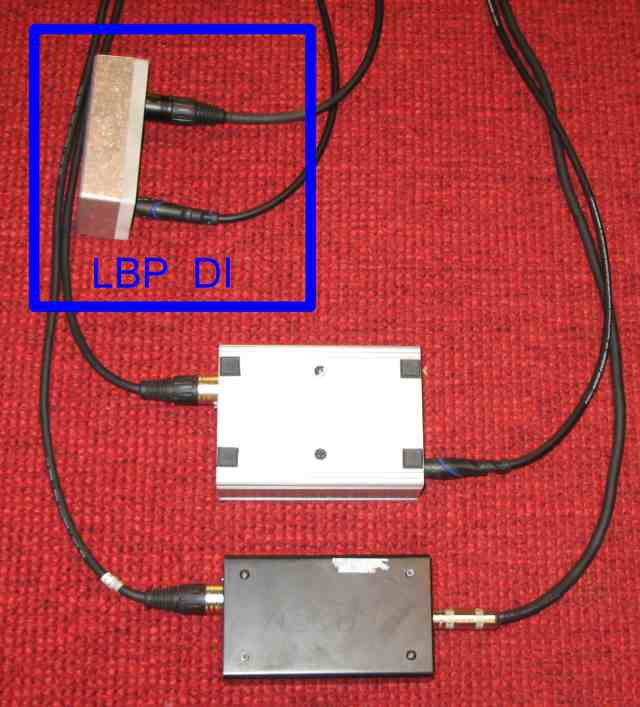

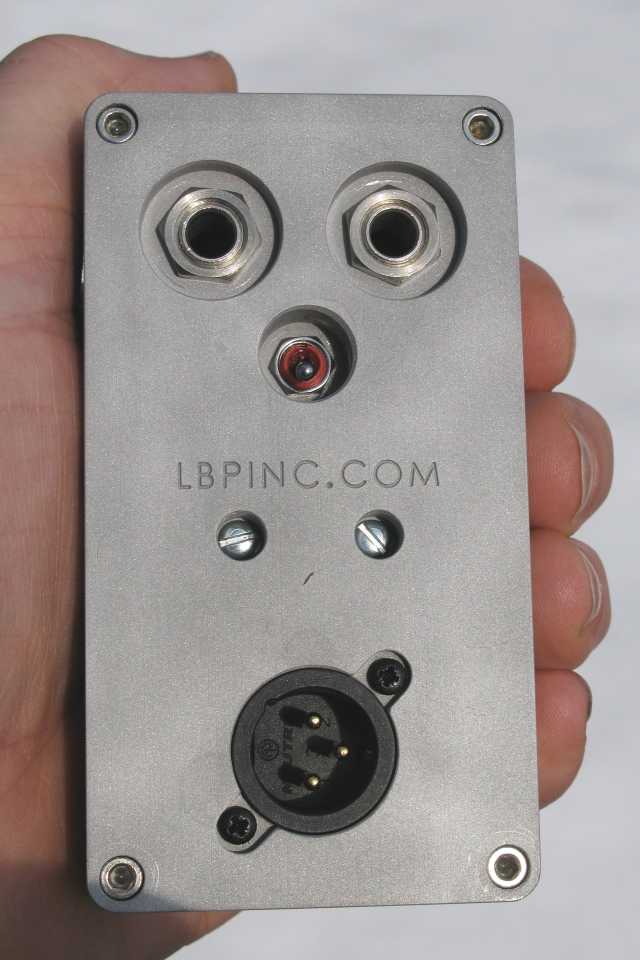

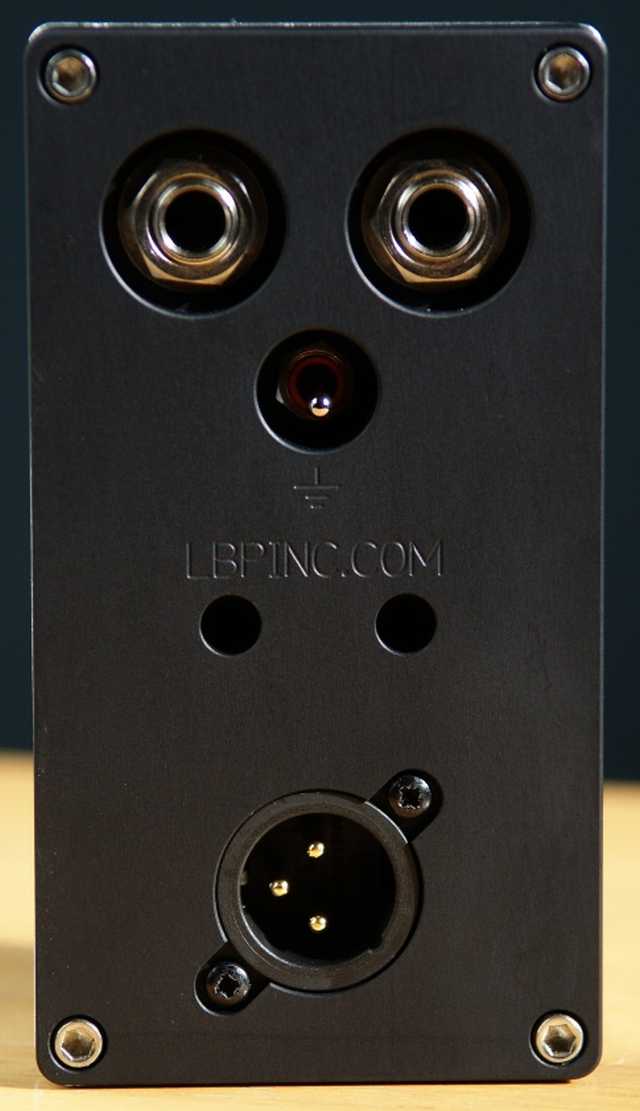

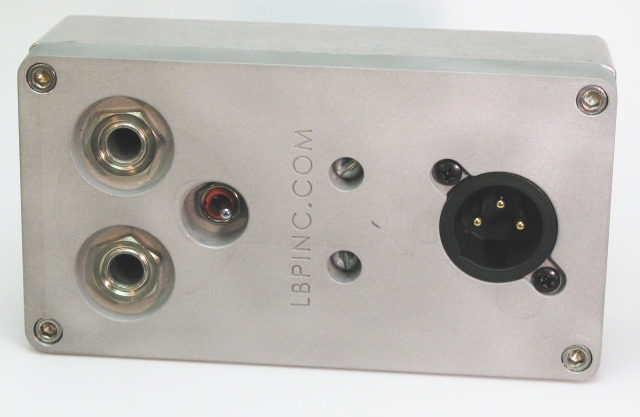

All your plugs go in the same side. That way it
and it’s plugs take up less space on the stage. It also
saves time during setup. Usually you will lay the box on
it's side with the cords coming out the side and laying on the
floor. You can route your cords like any other box
It just takes less room.

Specifications
Cost $135.00
EMAIL me for QTY over 3
Jensen transformer
(JT-DB-E) http://www.jensen-transformers.com/datashts/dbe.pdf
Aluminum case
(The
transformer is extremely well shielded magnetically by an 80%
nickel alloy
can that is about 300 times more effective than steel.)
A steel box would not help and if magnetized it could
hurt.
Gold plated
terminal Neutrik XLR jack. Shell
is not connected to case
(If you use a cord with pin 1 tied to the shell you will not
bypass the ground lift switch.)
¼ in instrument
jacks are open construction that can be
adjusted and cleaned.)
Ground lift switch
on Pin 1
RF ground remains
when ground is lifted.
Weight 10.2 oz.
Box can be
disassembled and serviced
Schematic Here
Click below to buy using PayPal $135 + $6.00
Shipping
